Screen Recording Door Phone

Screen Recording Door Phone

Regular price $485.95 Sale

Type: Intercom System
Camera Sensor type: CMOS
Viewing Angle (°): 90
Doorbell: Yes
Power: 15V DC
Samrt Home Interface: No
Communication Interface: Wired
Access Control: Inductive Card
Display Screen Size(inch): 7
Sensor Size(Inch): 1/4
Installation: Wall Mounting
Answering Mode: Hands-free
Connection Method: Wired
IP Camera Interface: No
Technology: Digital
Waterproof: Yes
Material: Metal ABS PMMA
Zone Input: None
Resolution: > 420 TV Line
Power: 110V to 240V AC
Camera: 700TVL Color
SD card: 8G (Supports maximum 32G SD )
Monitor size: 7 inch video record monitor
Is Customized: Yes
Waterproof: Support outside working
Night vision: Support
RFID unlock: Support
Remote unlock: Support remote control
Video recording and save photo: Support
E-lock: Electric control door lock (NO type)
Kit Configuration: One to One video door phone

Product Description:

The item you are watching is our new arrival video door phone system with recording function, it will record video automatically when someone press ring the bell. This allows you can see who visited your house when you are not at home or when you missed the call, if the visitors leave a message via the outdoor unit, you can also get more information via the video when you come back.
The monitor is equipped with 7" high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design. There is an important function compared to old version, this kit supports video recording, it can record a video automatically and it has a micro SD card slot supports Max. 32GB SD card.  It is a good choice for your home security and intercom.

This item contains 1 outdoor unit and 1 indoor unit. We provide a 8G SD card

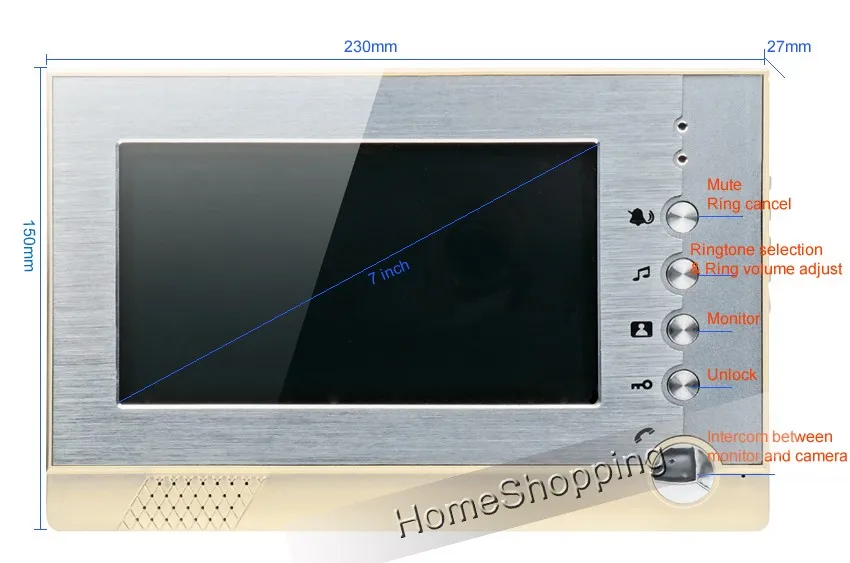

7" TFT digital color LCD;
16 melodies for ringing selection;
Show outdoor image manually.
Dual-way intercom between the outdoor unit and indoor monitor.
Monitor unlock control;
Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
TFT color screen with low power consumption, no radiation and high definition
Resolution: 800*480.
Hands-free intercommunication.
Brightness, chroma and volume adjustable
Ring cancel function, mute mode, do not disturb mode.
Comes with 5 RFID keyfobs, a push release button switch.
Supports maximum 500 rfid keyfobs
Video Recording and Photo Taking Function
Support Max. 32GB SD card
With micro-processing technology, auto-remote control, excellent performance and high Reliability.
Additional monitor available up to 4(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)


We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.

  •   0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m
